  • Smart View - Persons Responsible vs. Assets

CONTENTS

01. OVERVIEW

This report aims to display Persons Responsible vs. Assets.


Important

For this report to work, follow the documentation below to configure Smart View in your environment: Smart View - Configuration of the Protheus product integrated with Smart View.


Test Phase

This feature is on a test phase with pilot customers, being officially introduced in Release 12.1.2310.

This page and the feature may change until the release date of the feature.

02. EXAMPLE

Contextualization

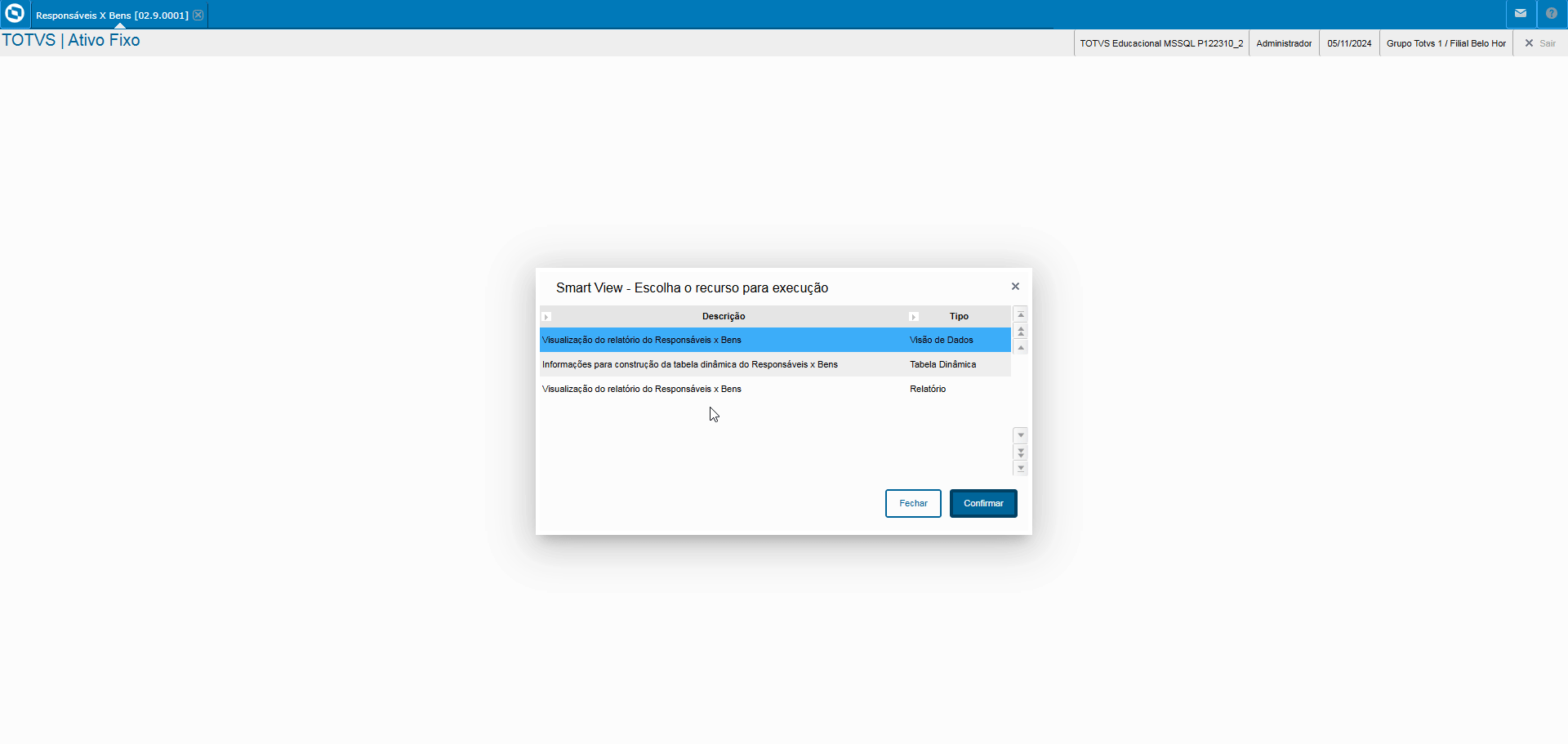

Report:


Data View:


Dynamic Table:

Important

We must highlight that organizing the dynamic table is up to the customer, who must structure it appropriately, depending on their needs and the rules defined, considering the fields available in the schema and parameter settings.


Parameters:

Parameters

Description

Activated in business object?

SV_MULTBRANCH

Branches

Yes

MV_PAR01

Initial Responsibility ?

Yes

MV_PAR02

Final Responsibility ?

Yes

MV_PAR03

Base code of the Initial Good ?

Yes

MV_PAR04

Initial asset Item ?

Yes

MV_PAR05

Final good base code ?

Yes

MV_PAR06

Final asset item ?

Yes

MV_PAR07

Select Branches?

No

Important

Parameters set to No in the list above are hidden in the report or Smart View design. These parameters neither affect the report nor its objects (Data View, Design and Dynamic Table).

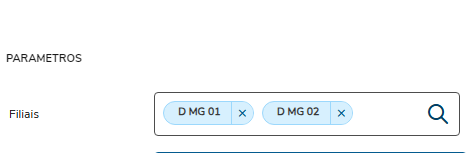

Selection of Branches and Header in the Design

The features below are improvements to Smart View evolution, advising the directives below


  • Framework offers the Branch Selection parameter as an improvement in Smart View, implemented in all modules that use this feature in their reports.



  • The branch description on the report header is an improvement to the Smart View design that is expected to be released in upcoming continuous dispatches.



These evolutions will be available in upcoming continuous dispatches, in accordance with the calendar and the release schedule.

For further information, refer to the link below.

Update Packages - Fixed Assets

03. BUSINESS OBJECT FIELDS

Name Displayed

Description

Origin

Acquisition Dt

Acquisition Date

N1_AQUISIC

Registration No.

Registration Number

N1_CHAPA

Summ. Descr.

Summarized Description

N1_DESCRIC

Classif Date

Classification Date

N1_DTCLASS

Address

Address

N1_LOCAL

Quantity

Asset Quantity

N1_QUANTD

Asset Base Cd

Base Code of Asset

ND_CBASE

Branch

System Branch (SND)

ND_FILIAL

Asset Item

Asset Item

ND_ITEM

Code

Participant Code

RD0_CODIGO

DDD Code

Phone DDD Code (Anonymized LGPD)

RD0_DDD

Phone

Phone (Anonymized LGPD)

RD0_FONE

Partic Name

Participant Name

RD0_NOME

Company Name

Logged Company Name

System

Branch Name

Logged Branch Name

System

04. ACCESS TO THE OBJECT VIA PROTHEUS MENU

You can run the Persons Responsible vs. Assets business object through the Protheus menu using the program ATFSV025.

05. TABLES

  • SN1 - Fixed Assets
  • SND - Persons Responsible for Assets
  • RD0 - People/Participants
